Handheld Color ECG EKG Heart Monitor
Quick Details
  • Type:
  • Pathological Analysis Equipments
  • Brand Name:
  • Place of Origin:
  • Shandong, China (Mainland)
  • Model Number:
  • PC-80B
  • Name:
  • Portable Handheld Color ECG EKG Heart Monitor
  • Certificate:
  • Usage:
  • Household, Family,clinic,school
  • Color:
  • Blue,yellow
  • Display:
  • LCD Digital Display
  • Battery:
  • 2*AA battery
  • Accessories:
  • USB cable,CD with software,manual,leather bag
  • Records:
  • 300*30seconds records
  • Wave form:
  • 17types of different wave forms
  • Size:
  • 125*70*21.5mm
Packaging & Delivery
  • Packaging Details:
  • Giftbox for handheld ecg machine
  • Delivery Time:
  • In 30 days
Product Description

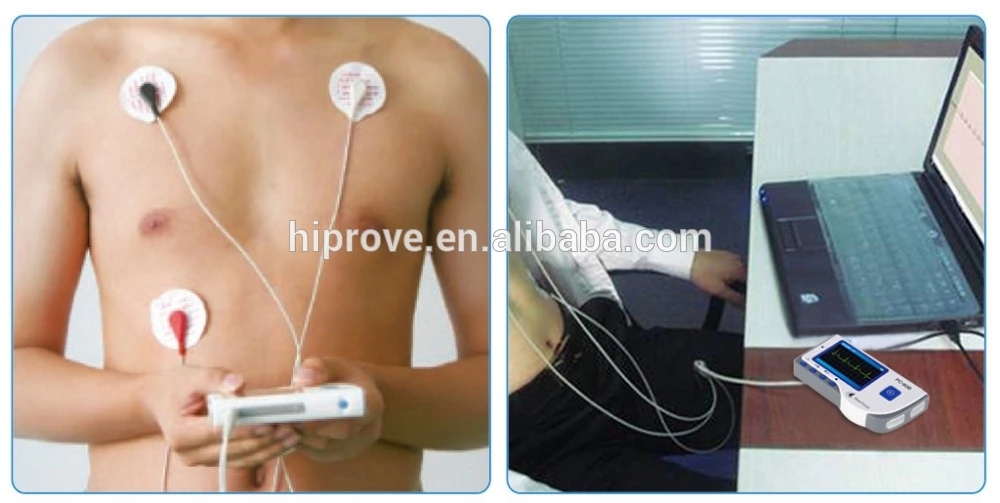

The Easy ECG Monitor is FDA approved. It is a compact, portable handy device for patients (or professionals) to record 30 seconds of ECG data anytime or anywhere, comfortably, with or without electrodes.
Its large, high resolution LCD display gives clear, easy to read results and is suitable for use in hospitals, clinics, health centres, nursing homes, residential homes, offices etc. It gives accurate and reliable readings at your most convenience if it is for private use. It is also cost effective to health professionals as patients are screened and filtered at this stage before referring them to hospitals.
If you have any questions or concerns in any of the ECG records, you can capture the recording and mention it to your health professionals for advice. Data can be transferred to PC, laptop etc should it need to be shown and analyzed further by health professionals.\

Technical Specifications
-Display Mode: Color LCD display
-The number of measuring channel: Single channel ECG signal.
-Resolution:  240*160
-Screen Size (mm): 40*57.6
-Signal Input: Single embedded metal electrodes or external lead wire
-Lead Selections & Measuring Modes: Quick measurement by embedded electordes; Measurement by external electrodes with lead wires(single channel for Lead I, II,or III)
-ECG Bandwidth: 1-40Hz
-Internal Noise Level: ≤30uVp-p
-Heart Rate Range: 30-240bpm
-Heart Rate Accuracy: ±2bpm or ±2%,whichever is greater
-Display Scale: 5mm/mV ±10%
-Input loop current: ≤0.1μA
-Input impedance: ≥5 MΩ
-Wave Form Sweeping Speed: 20mm/s±10%
-Measurement Time: 30 seconds per test
-Dimensions(mm): 125*70*21.5
-Net Weight (without Batteries): 106g
-Power Supply: 2*AA batteries
-Voltage: DC 5.0V/1.0A
